Pack designer
Model chemistry, series-parallel topology, voltage window, capacity, energy, current and runtime.
Design · the first pillar

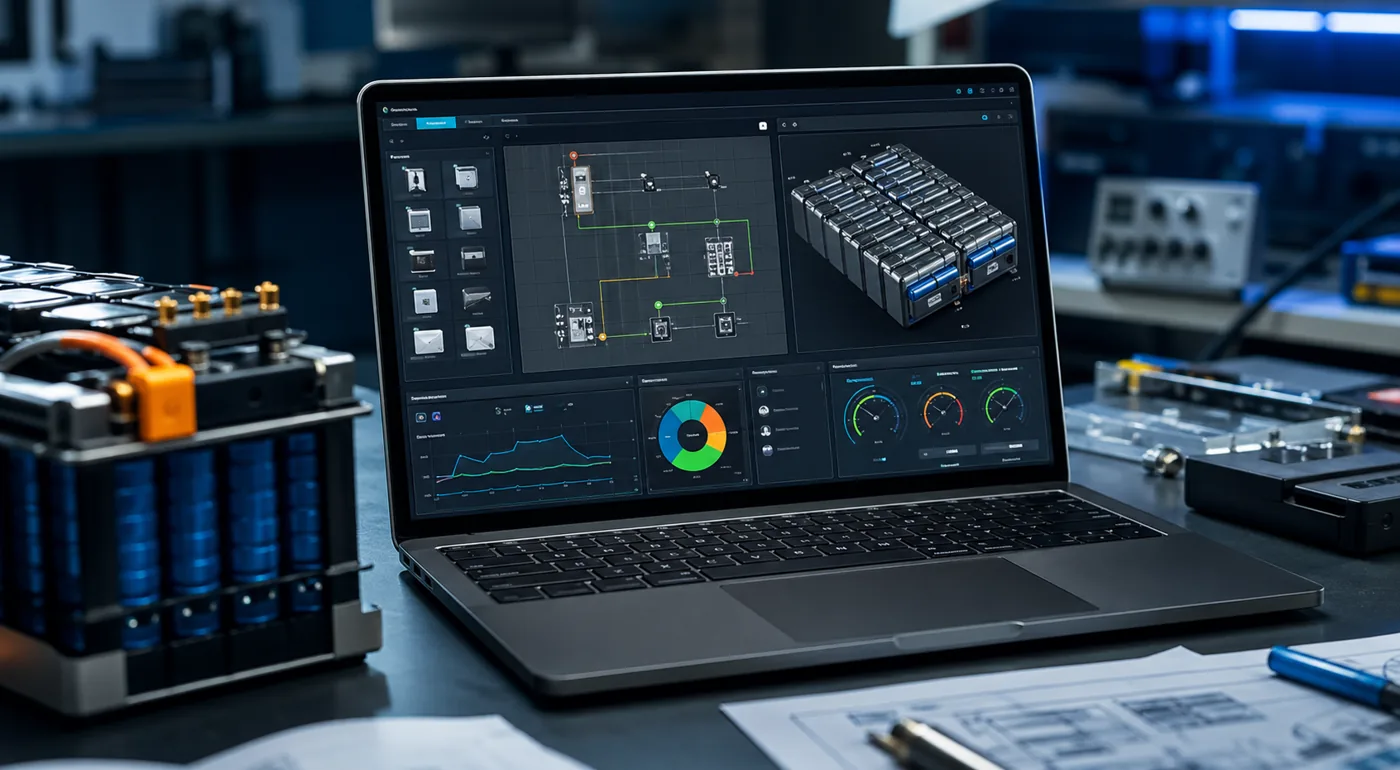

Robust battery design software for teams that build packs.
Convert battery requirements into pack topology, BMS architecture, simulation checks and shareable reports — then carry the same pack through to Deploy and Operate.
Modules
Everything between requirement and review-ready spec
BMS builder
Place AFE, shunt, MOSFET, NTC, CAN, precharge, fuse and contactor modules into a visible architecture.
Analysis engine
Run electrical, thermal and safety checks that highlight missing components and design risks.
Report workflow
Generate concept specs for internal review, training, client proposals and paid engineering services.
Team licensing
Browser-based access for learners, consultants, design teams and lab cohorts — nothing to install.
Custom deployment
Add private component libraries, branding, dashboards and domain-specific workflows.
Workflow
From requirement to concept spec in one sitting.
The design studio walks a pack from inputs to a documented architecture — with analysis at every step, so problems surface before hardware exists.
- Chemistry-aware: LFP, NMC and sodium-ion concept tracks
- Live electrical output: voltage, energy, current, runtime
- Exportable concept spec for engineering discussion
Define the pack
Chemistry, series and parallel counts, cell Ah, load power and ambient assumptions.
Place the BMS
Drag AFE, shunt, MOSFET bank, NTC sensors, precharge, fuse and CAN onto the board.
Run analysis
Electrical, thermal and safety scoring flags missing components and sizing risks.
Export the spec
A clean concept spec ready for design review — and, later, the baseline Operate measures against.
Ready when you are
Design your next pack in the browser.
The public design studio is free to try — no account needed.
